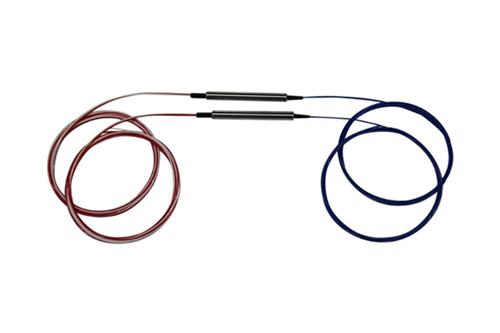

三端口光環形器
產品特點
- Low Insertion Loss
- Wide Band High Isolation
- Low PDL
- Compact In-Line Package
- High Stability and Reliability
- Epoxy Free Optical Path
光環行器是一種三端口或四端口的光學裝置，其設計使進入任何端口的光從下一個端口出口。這意味著，如果光進入端口1，它是從端口2發射出來的，但是如果一些發出的光被反射回循環器，它不是從端口1出來，而是從端口3退出。光纖環行器被用來分離在光纖中向相反方向運動的光信號，例如在一根光纖上實現雙向傳輸。[1]由于其對輸入光功率和反射光功率的高度隔離以及它們的低插入損耗，光環被廣泛地應用于先進的通信系統和光纖傳感器的應用中。
- Optical Amplifier
- Metro Area Network
- Wavelength Add / Drop
- Dispersion Compensation
- Bi-Direction Communication
Performance Specifications
| Parameter | P Grade | A Grade | |
| Configuration | Port 1 to Port2 to Port 3 | ||
| Operation Wavelength (nm) | 1470 to 1610 | ||
| Insertion Loss (dB) | Typical | 0.7 | 0.8 |
| Maximum | 1.0 | 1.1 | |
| Channel Peak Isolation (dB) | >50@1550nm | ||
| Channel Isolation (dB) | >40@1520nm~1580nm; >32@1470nm~1610nm | ||
| Channel Cross Talk (dB) | >50 | ||
| Polarization Dependent Loss (dB) | <0.15 | ||
| Polarization Mode Dispersion (ps) | <0.1 | ||
| Return Loss (dB) | >50 | ||
| Power Handling (mW) | 300 | ||
| Operating Temperature (°C) | 0 ~ +70 | ||
| Storage Temperature (°C) | -40 ~ +85 | ||
| Dimensions (mm) | ?5.5 x L67 | ||
