GPJ01-B Series Optical Fiber Connection Box
Products feature

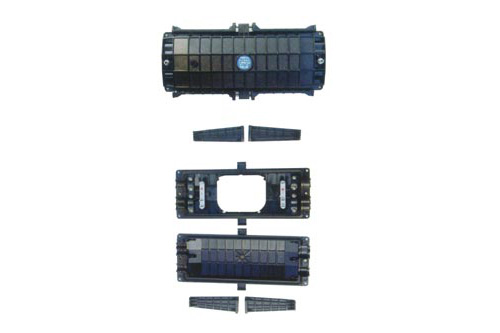

GPJ01-B type cable splice box is designed according to arc shape. On the opposite side, the clamp structure is adopted. It is convenient to install. The installation can be completed by inserting four oblique slots and tightening four stainless steel screws. It will bring great convenience to the repeated opening and use of the expansion increment of optical cable in the future, and greatly improve the construction efficiency. Because the four oblique inserts and the main body of the cable joint box are made of engineering plastics with the same formula, the shrinkage and expansion coefficients are the same under different temperature environments, and the variation is the same, so the cable joint box has high reliability and sealing performance.
GPJ01-B type cable splice box shell main structure parts, inclined insert board, optical wrap fixing frame all adopt high strength imported engineering plastics – flame retardant polycarbonate (PC), and scientific and reasonable formula, injection molding. The product can effectively prevent material aging caused by heat, cold, light, oxygen and microorganisms in nature, and has good mechanical strength. The solid cable connector box shell and main structure can withstand the worse environmental changes. It also plays the role of flame retardant and waterproof, making vibration, impact, cable stretching and twisting. Wait for protection.
| Model | Use occasion | Optical cable connection mode | Number of apertures in and out of optical cable | Maximum capacity (core) |
| GPJ-G22 | Pipeline | Divergence | 2 x 2 | 96 |
| GPJ-P33 | Direct burial | Divergence | 3 x 3 | 144 |
| GPJ-K22 | Overhead | Divergence | 2 x 2 | 96 |
