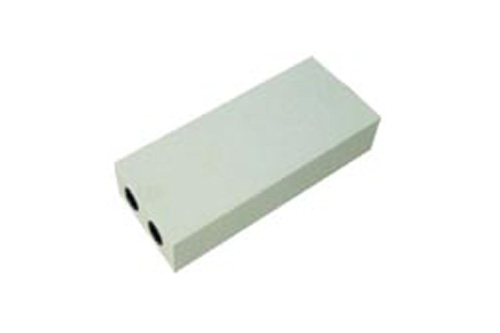

GP05-A Optical Cable Terminal Box
Products feature
- The box body is made of cold-tied steel plate, and the surface is electrostatic sprayed with plastic. The shape is beautiful and generous.
- Number of fibre core 12-48, can be customized according to user’s needs
- Optical cable introduction and fixture are fully equipped, up to two optical cables can be used.
- Hanging wall installation, flexible installation
- Small structure, suitable for low cost, small capacity end-to-end optical cable
- Protective Connection between Optical Cable and Distribution Tail Fiber
- Suitable for connection of optical cable and optical communication equipment
- ambient temperature: -25℃～+55℃
- Insulation Resistance: ≥2×104MΩ
- Voltage withstand strength: 3 KVDC/1 min under the action of no breakdown, no arc phenomenon
| Model | Import Number of Optical Cables | tail fiber outlet |
| GP05-2/24 | 2 | 24 |
| GP05-3/24 | 3 | 24 |
| GP05-3/48 | 2 | 48 |
