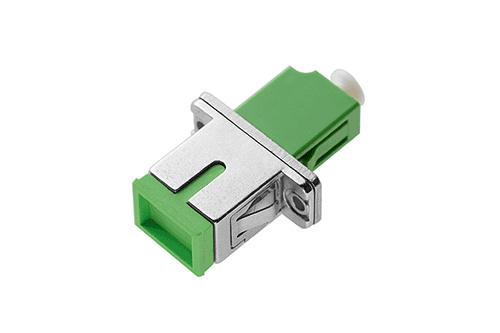

LC-SC Optical Fiber Adapter
Products feature
- 100% optical test according to industry standard – ensure reliability
- Low insertion loss
- High Quality Ceramic Casing – Provide high quality stability, repeatability and interchangeability
- Good temperature stability
- Various colors, optional
- Compliance with IEC 61754, YDT 1272 and other relevant standards
Fiber optic adapter (also known as flange), also known as fiber optic connector, is a device for detachable (movable) connection between fiber and fiber. It is a device that precisely butts the two ends of the optical fiber, so that the output light energy of the transmitting optical fiber can be coupled to the receiving optical fiber to the maximum extent, and the influence on the system caused by its interference in the optical link can be minimized. To some extent, optical fiber connectors also affect the reliability and performance of optical transmission system.
- Optical Fiber Communication System, High Speed and Large Capacity Optical Fiber Transmission System
- Local Area Network (LAN), Wide Area Network (WAN), FTTX, Optical Fiber CATV Network
- Communication room, data center, optical fiber connection transmission equipment, national defense readiness, etc.
| Item | Specification parameters | |
| Applicable connector type | ST、SC、FC、LC、MTRJ、MU、MPO、E2000 | |
| Connector Fiber Type | Single mode | Multimode |
| 適配顏色 | 藍色、綠色、金屬 | 米色、金屬、綠色 |
| 測試波長 | 1310nm，1550nm | 850nm，1300nm |
| 插入損耗 | 典型值≤0.15db，最大值≤0.20db | 典型值≤0.15db，最大值≤0.20db |
| 可重復性 | 0.10db | |
| 可互換性 | 0.20db | |
| 插入性功能 | 拔1000次的損耗變化≤0.20db | |
| 通道數 | 單芯、雙芯 | |
| 外框材質 | 塑料或金屬 | |
| 套筒材料質量 | 陶瓷（zro2）或客戶要求 | |
| Working temperature | -40℃?to +80℃ | |
| Storage temperature | -40℃?to +85℃ | |
