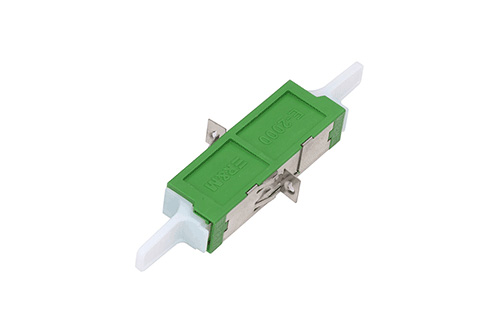

E2000 Fiber Optic Adapter
Products feature
- 100% optical test according to industry standard – ensure reliability
- Low insertion loss
- High Quality Ceramic Casing – Provide high quality stability, repeatability and interchangeability
- Good temperature stability
- Various colors, optional
- Compliance with IEC 61754, YDT 1272 and other relevant standards
Fiber optic adapter (also known as flange), also known as fiber optic connector, is a device for detachable (movable) connection between fiber and fiber. It is a device that precisely butts the two ends of the optical fiber, so that the output light energy of the transmitting optical fiber can be coupled to the receiving optical fiber to the maximum extent, and the influence on the system caused by its interference in the optical link can be minimized. To some extent, optical fiber connectors also affect the reliability and performance of optical transmission system.
- Optical Fiber Communication System, High Speed and Large Capacity Optical Fiber Transmission System
- Local Area Network (LAN), Wide Area Network (WAN), FTTX, Optical Fiber CATV Network
- Communication room, data center, optical fiber connection transmission equipment, national defense readiness, etc.
| Item | Specification parameters | |
| Applicable connector type | ST、SC、FC、LC、MTRJ、MU、MPO、E2000 | |
| Connector Fiber Type | Single mode | Multimode |
| Adapter color | Blue, Green, Metal | Beige, metal, light green |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion loss | Typical values≤0.15dB，Maximum≤0.20dB | Typical values≤0.15dB，Maximum≤0.20dB |
| Repeatability | ≤0.10dB | |
| Interchangeability | ≤0.20dB | |
| Plugging performance | Loss Change of 1000 Insertions≤0.20dB | |
| Channel Number | Single core and double core | |
| Outer frame material | Plastics or metals | |
| Sleeve Material | Ceramics (ZrO2) or customer requirements | |
| Working temperature | -40℃?to +80℃ | |
| Storage temperature | -40℃?to +85℃ | |
