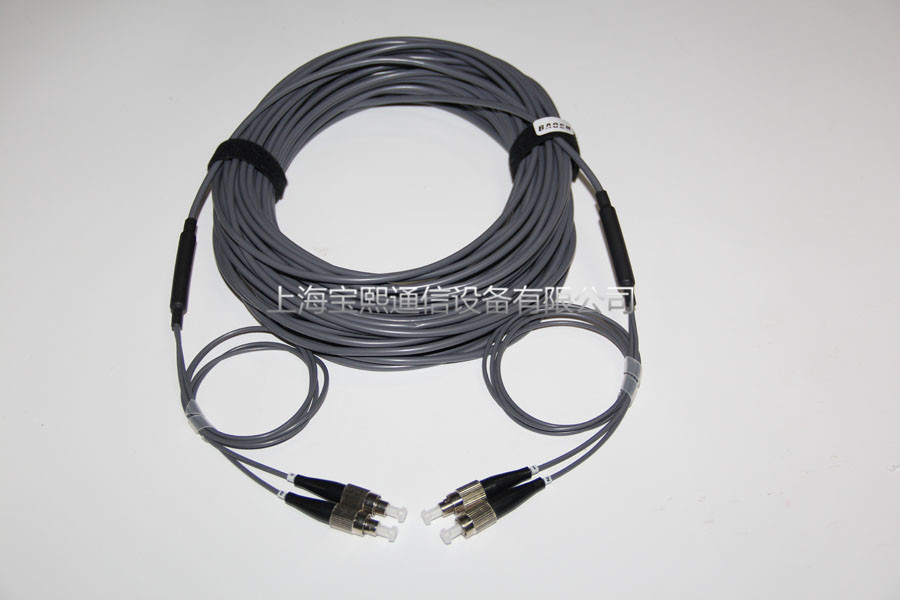

Armoured Optical Fiber Active Connector
Products feature
- Armored Optical Cable, Strong and Durable
- High tensile, high compressive and rodent bite resistance
- Standard plug, easy to connect
- Good bending performance of optical cable
- Reduce future maintenance costs
Armored fiber optic connector is a kind of fiber optic connector made of single-core armored fiber optic cable. Because the armored fiber optic cable is covered with armor, it can be prevented.Trample, rat bite, etc., but also improve the compressive capacity of optical cable. In addition, multi-core armored connector products can also be designed according to user requirements.
Should be used
- Television Relay Vehicle
- Anti-rat Bite Optical Communication
- Mobile Optical Communication
| Single mode | Multimode | |
| Product type | duplex、FC/SC/ST/LC(UPC) | duplex、FC/SC/ST/LC(PC) |
| Insertion loss | ≤0.3dB | ≤0.3dB |
| Echo Loss | ≥50dB | ≥35dB |
| Repeatability | ≤0.1dB | ≤0.1dB |
| Service temperature | -40℃～ +85℃ | -40℃～ +85℃ |
| Tensile strength | 15kg?or 147N | 15kg?or 147N |
| Compressive strength | 250kg/50mm?or?2450N/50mm | 250kg/50mm or?2450N/50mm |
| Gross weight | 25kg/km | 25kg/km |
